Products

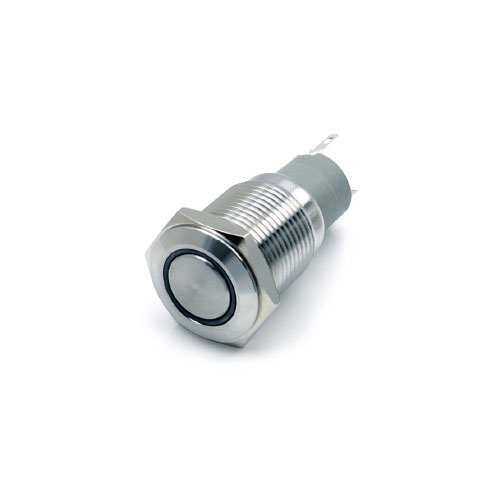

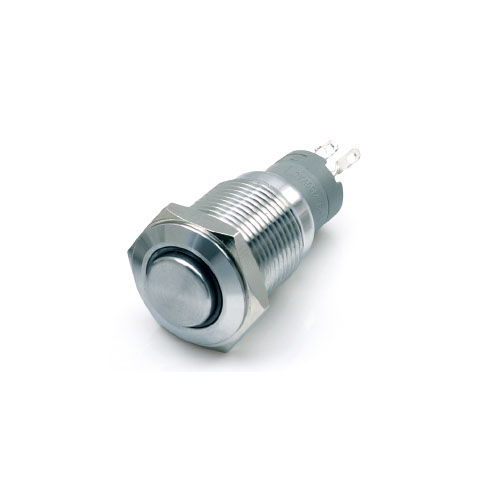

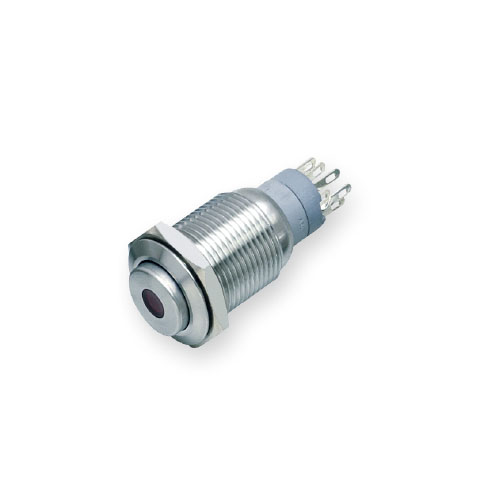

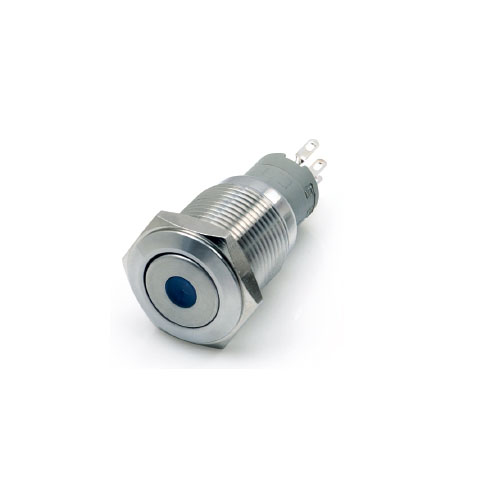

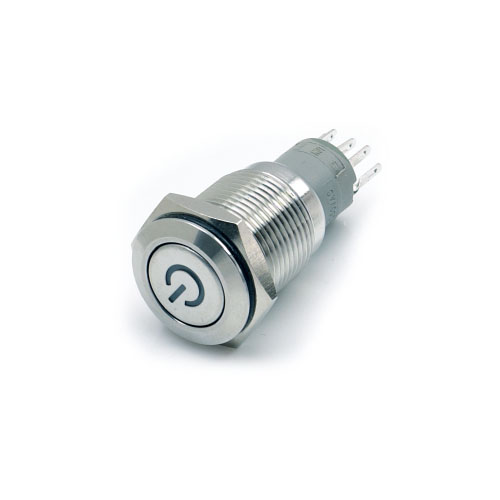

QN16 C1-C5
Push button Switches
Metal push button switches are durable, versatile, and offer a superior tactile experience, making them suitable for various applications. They are commonly used in industrial control panels, consumer electronics, and even automotive and aerospace applications due to their reliability and long lifespan.
Material | Stainless steel/Nickel plated brass |
Function | ON-OFF with lamp |
Operation Type | Latching/Momentary |
Head Shape | Flat, High Flush |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
High Voltage Resistance | 2000VAC |
Environment Temperature | -20~+85℃ |
Protection Type | IP67 |
LED Light Color | Red,Orange,Yellow,Green,Blue,White |

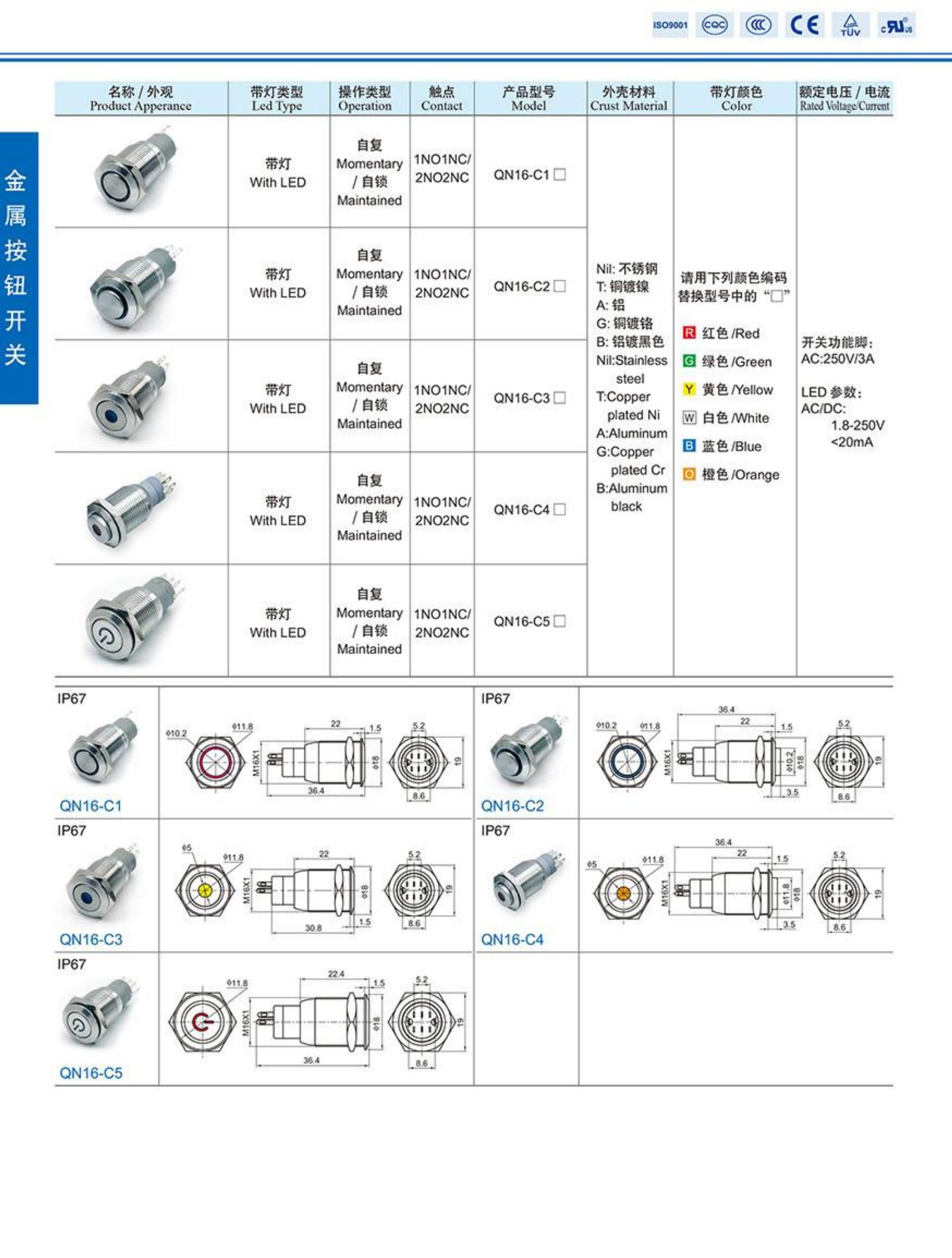

PRODUCT
SPECIFICATION
产品规格书
