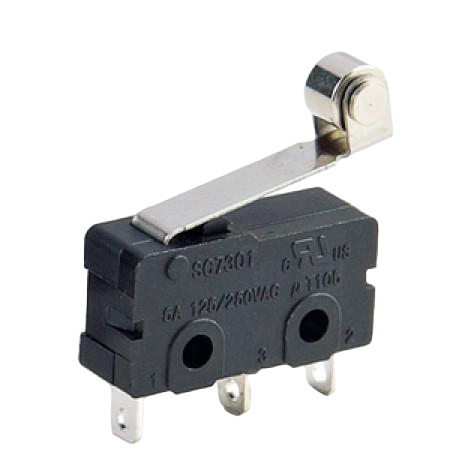

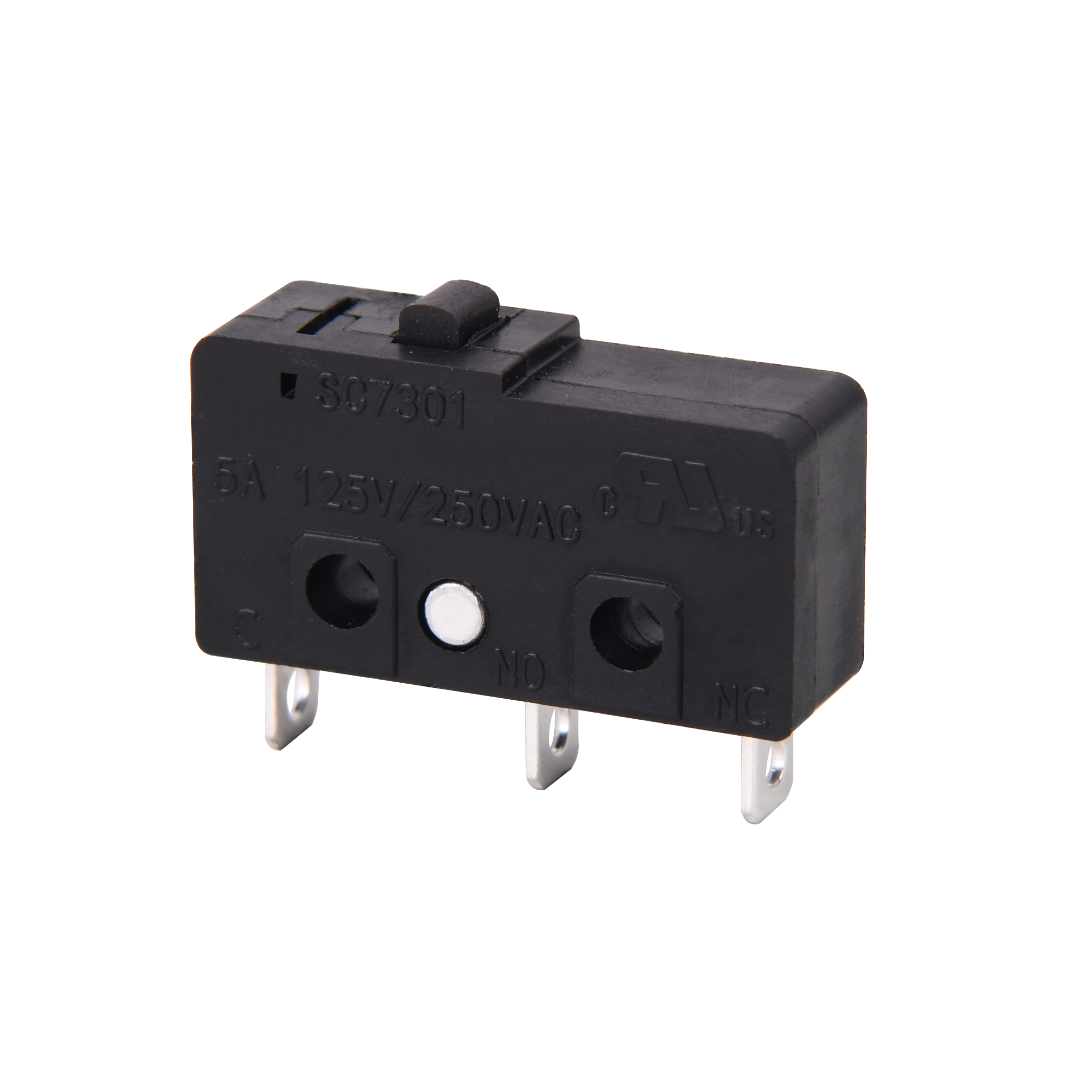

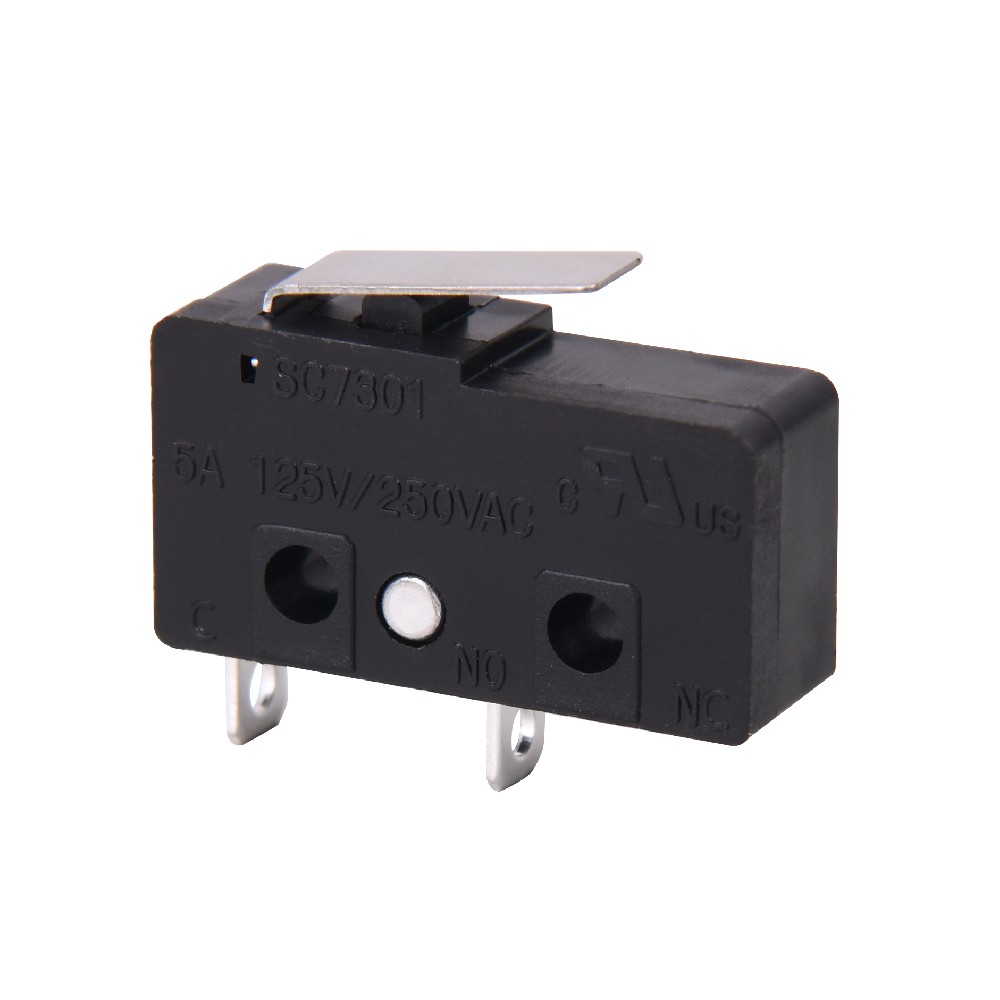

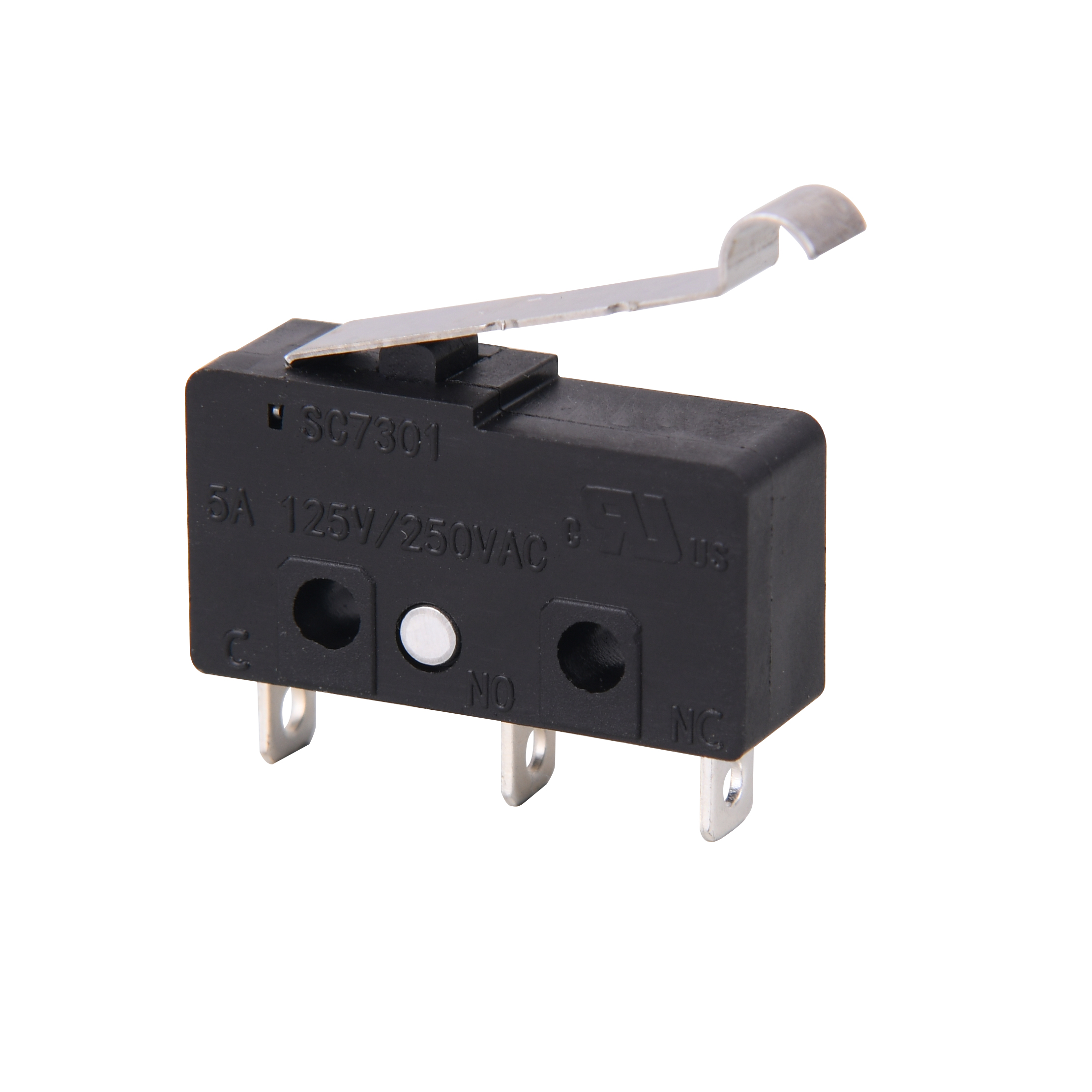

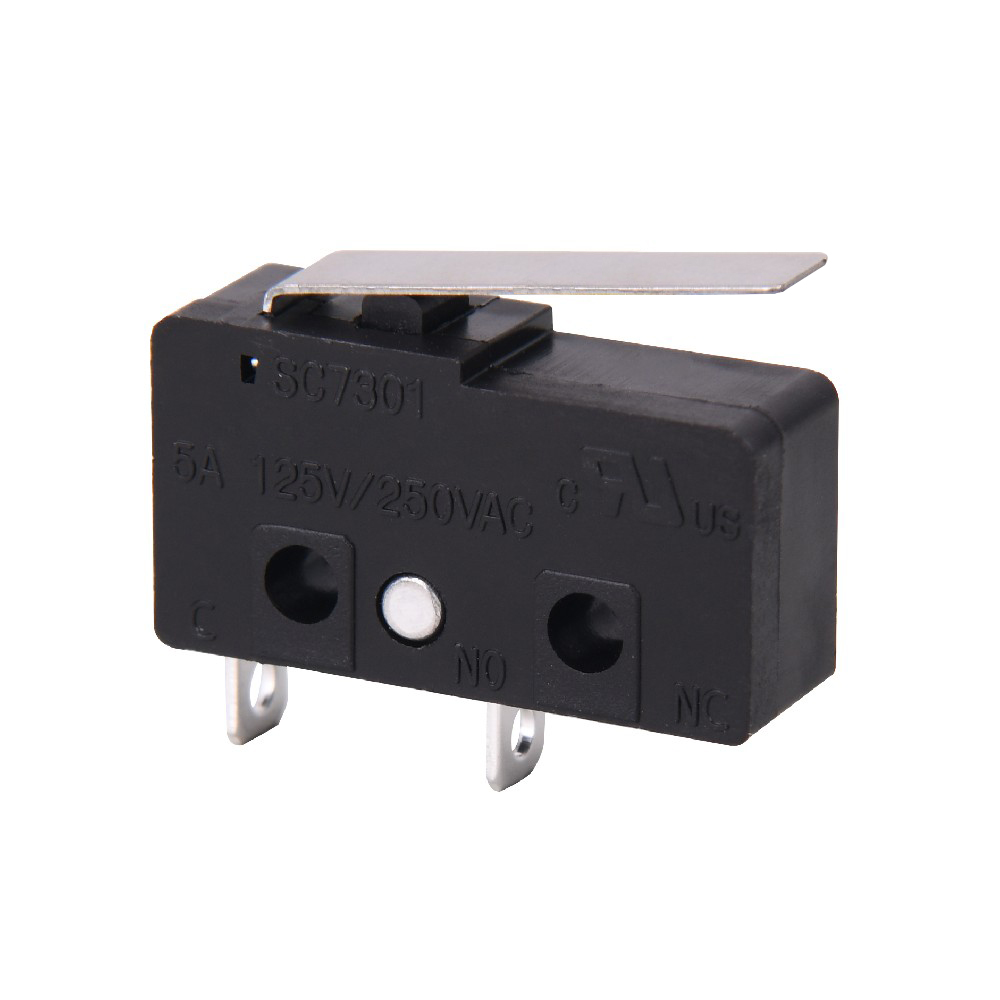

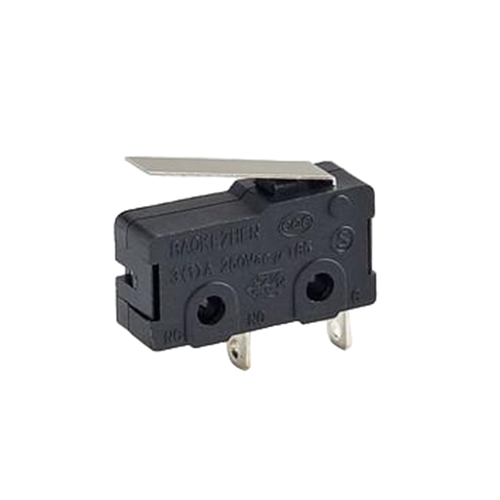

SC7301

Micro Switches

BAOKEZHEN Micro switch, various handle for your choice, excellent actuation characteristic, Excellent Beryllium Copper spring support enough contact force and ensure mechanical life; Lesser Operation travel.


Protection type

IP 20

Ambient temperature

0℃～+125℃

Flammability

UL94V-0

Heat and fire resistance

850℃

Material of housing and actuator

PA66

Material of Contacts

Ag or AgSnO2

Material of Terminals

Copper Alloy

Push-on force of terminals

≥96N

Electrical life

1E4/10E4

Approval marks

CQC,UL,SEMKO

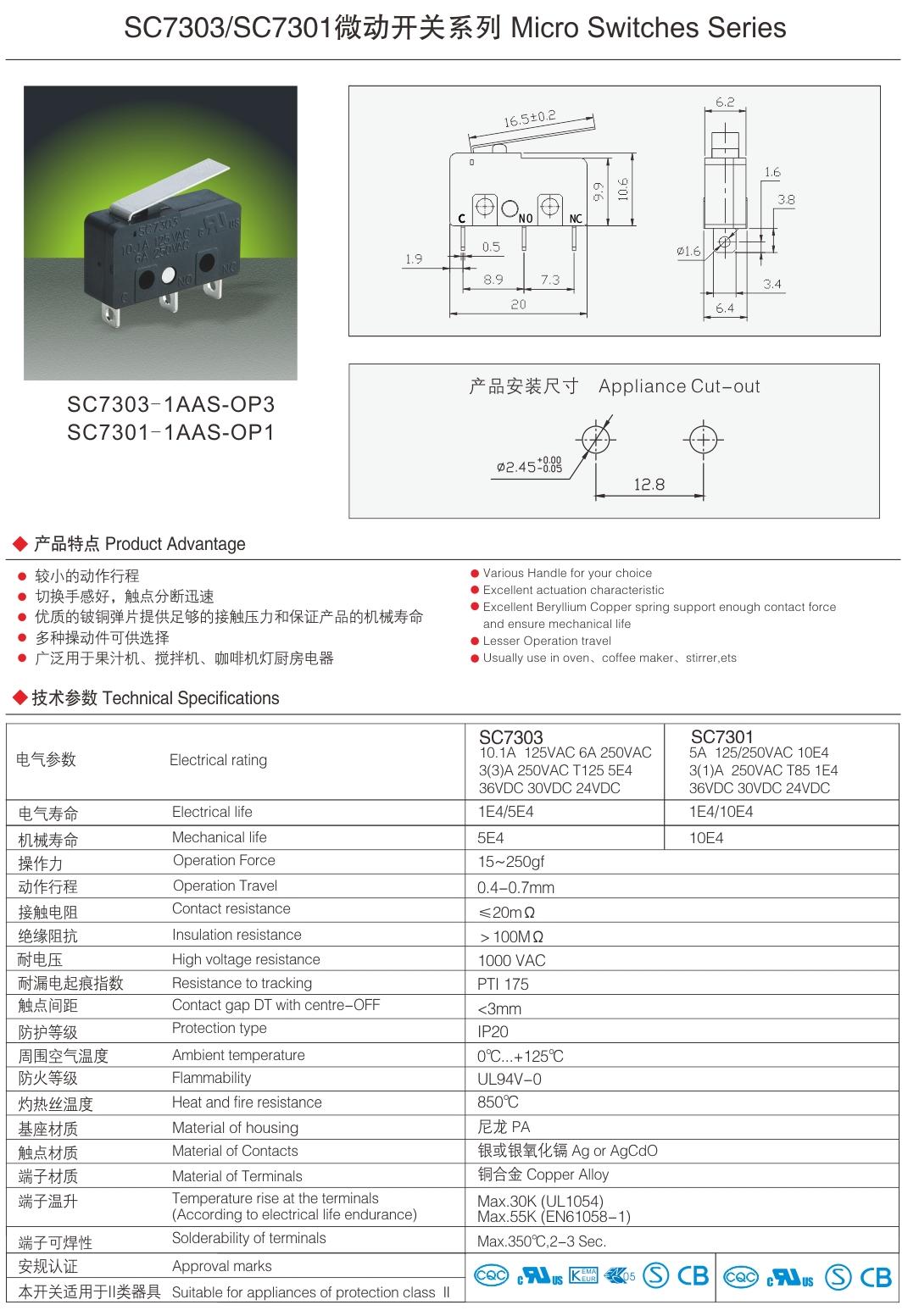

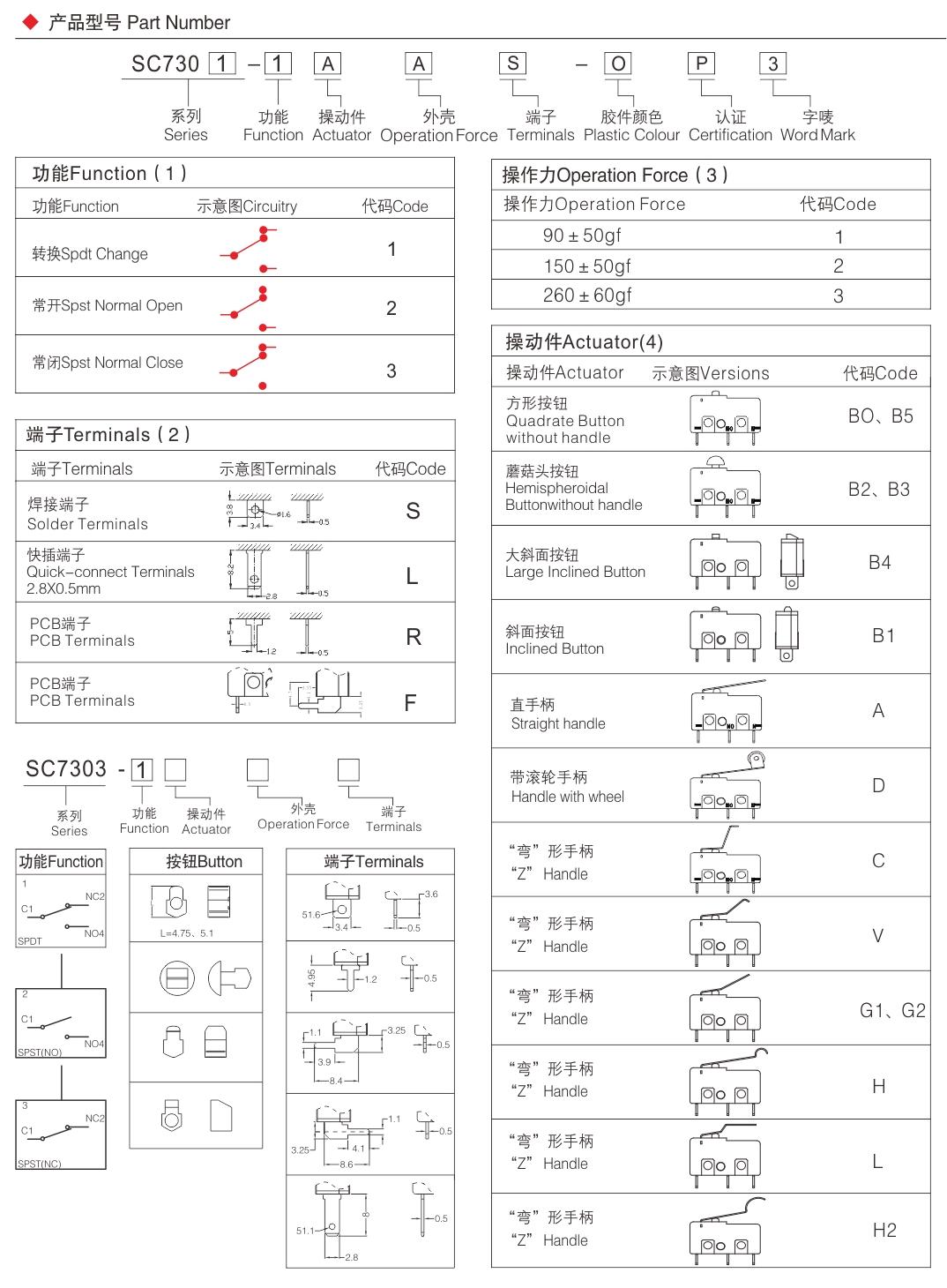

PRODUCT
