Products

SC728

Toggle Switches

BAOKEZHEN lever switch, long lever convenient for operation, Excellent actuation characteristic, Excellent SWPB spring support enough contact force and ensure mechanical life; Various functions for your choice; Usually use in oven, coffee maker, stirrer, ets

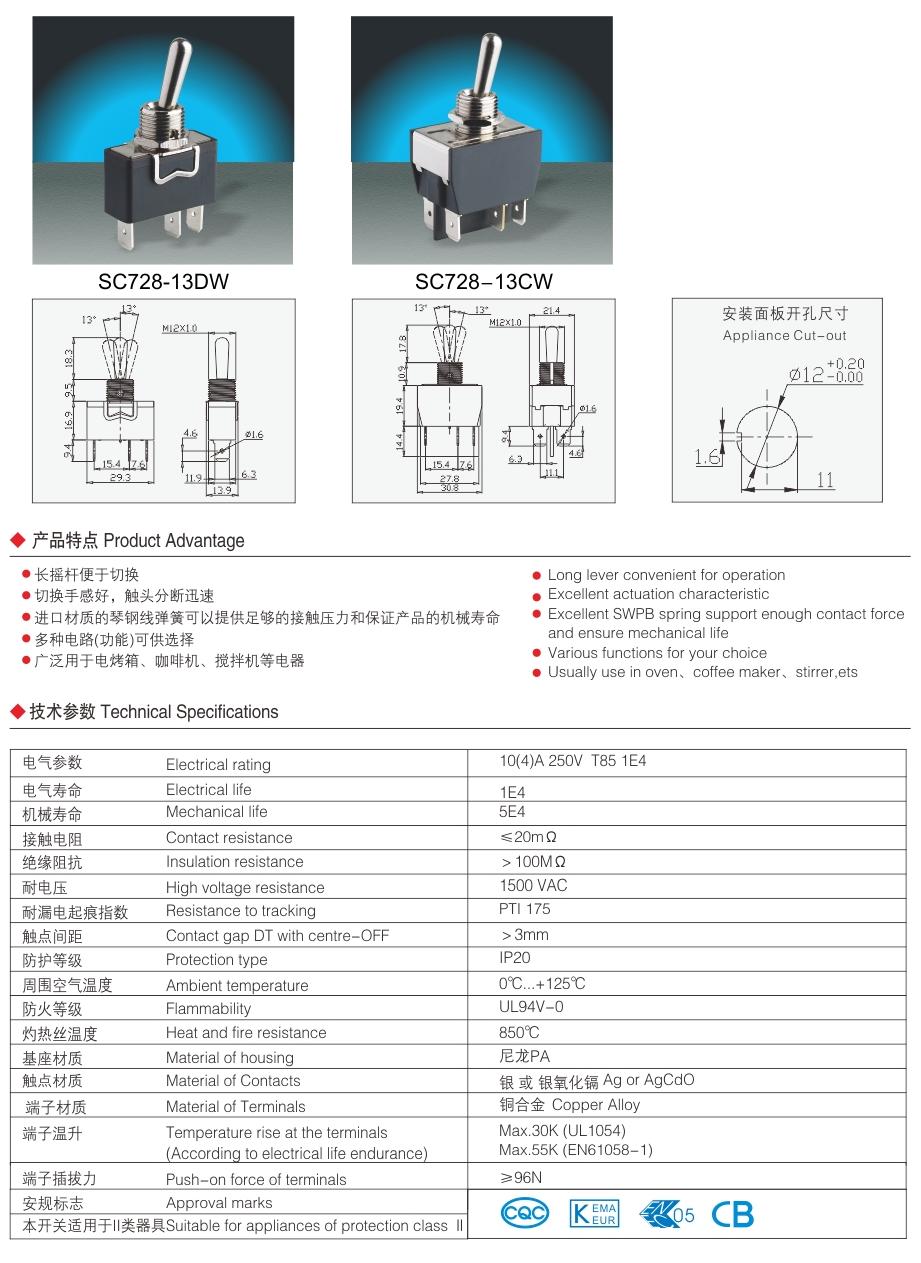

23c75053f78fb9395be7b6866b17a7c4 - 副本.jpg

Protection type

IP 20

Ambient temperature

0℃～+85℃

Flammability

UL94V-0

Heat and fire resistance

850℃

Material of housing and actuator

PA66

Material of Contacts

Ag or AgSnO2

Material of Terminals

Copper Alloy

Push-on force of terminals

≥96N

Electrical life

1E4

Approval marks

CQC,ENEC


PRODUCT
SPECIFICATION
