Products

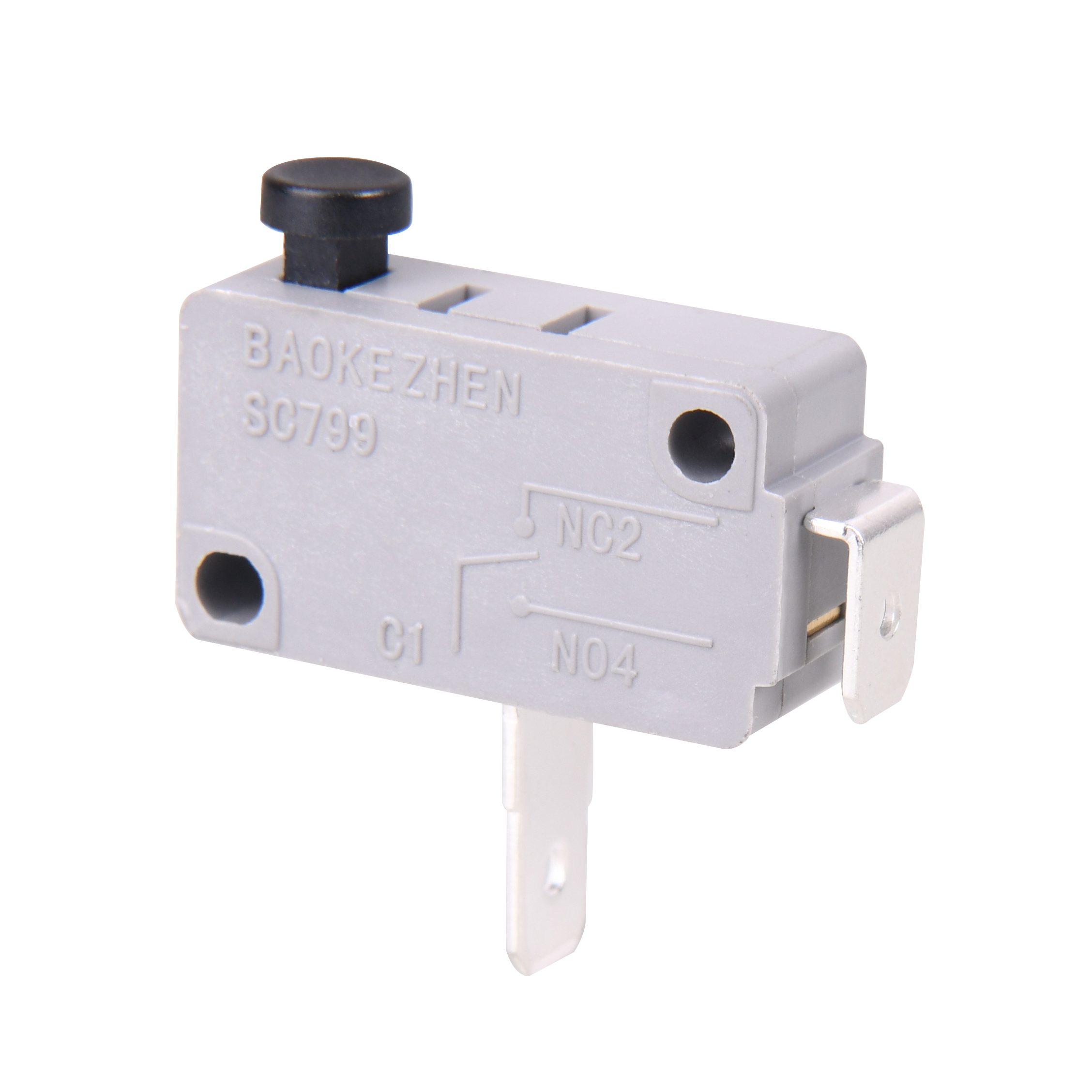

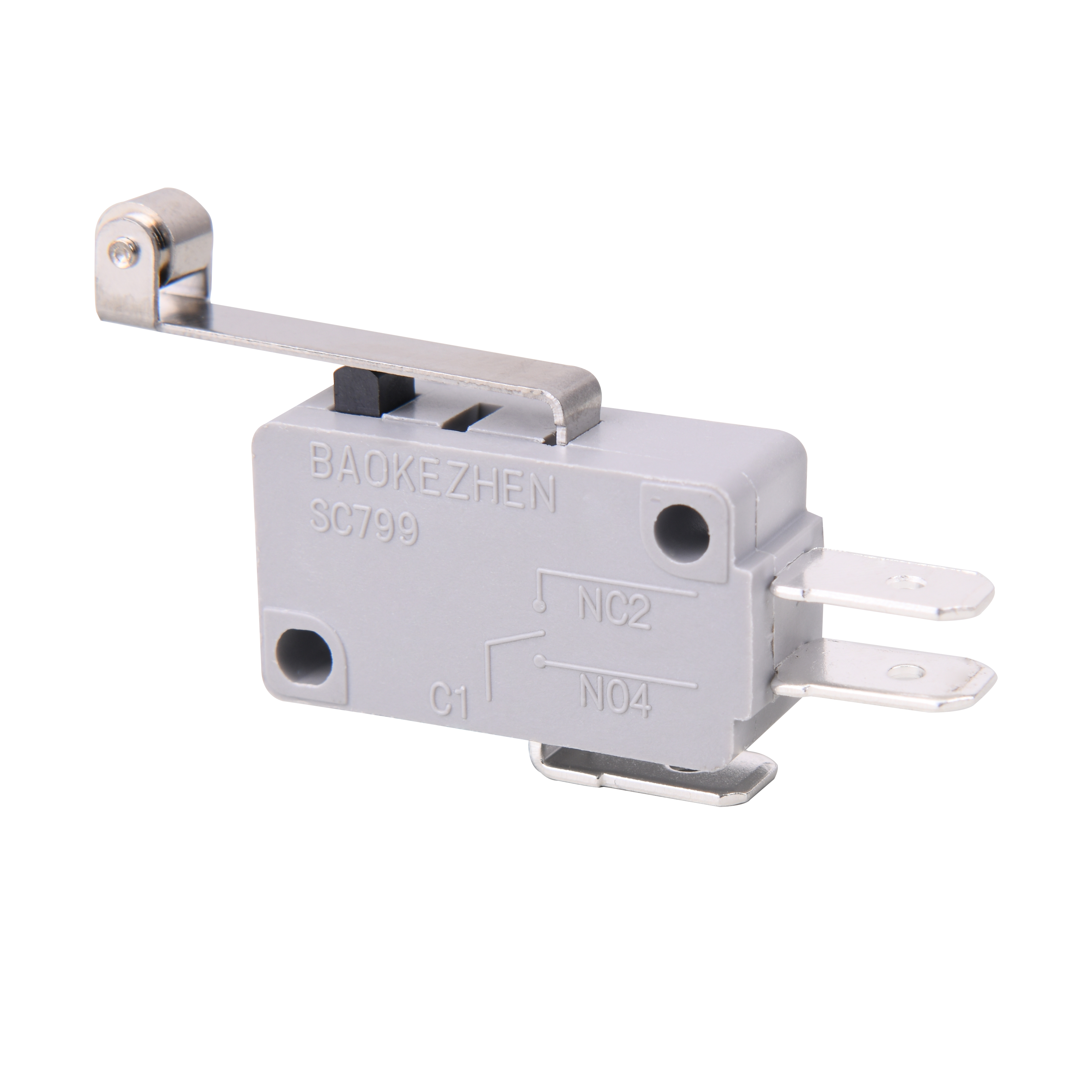

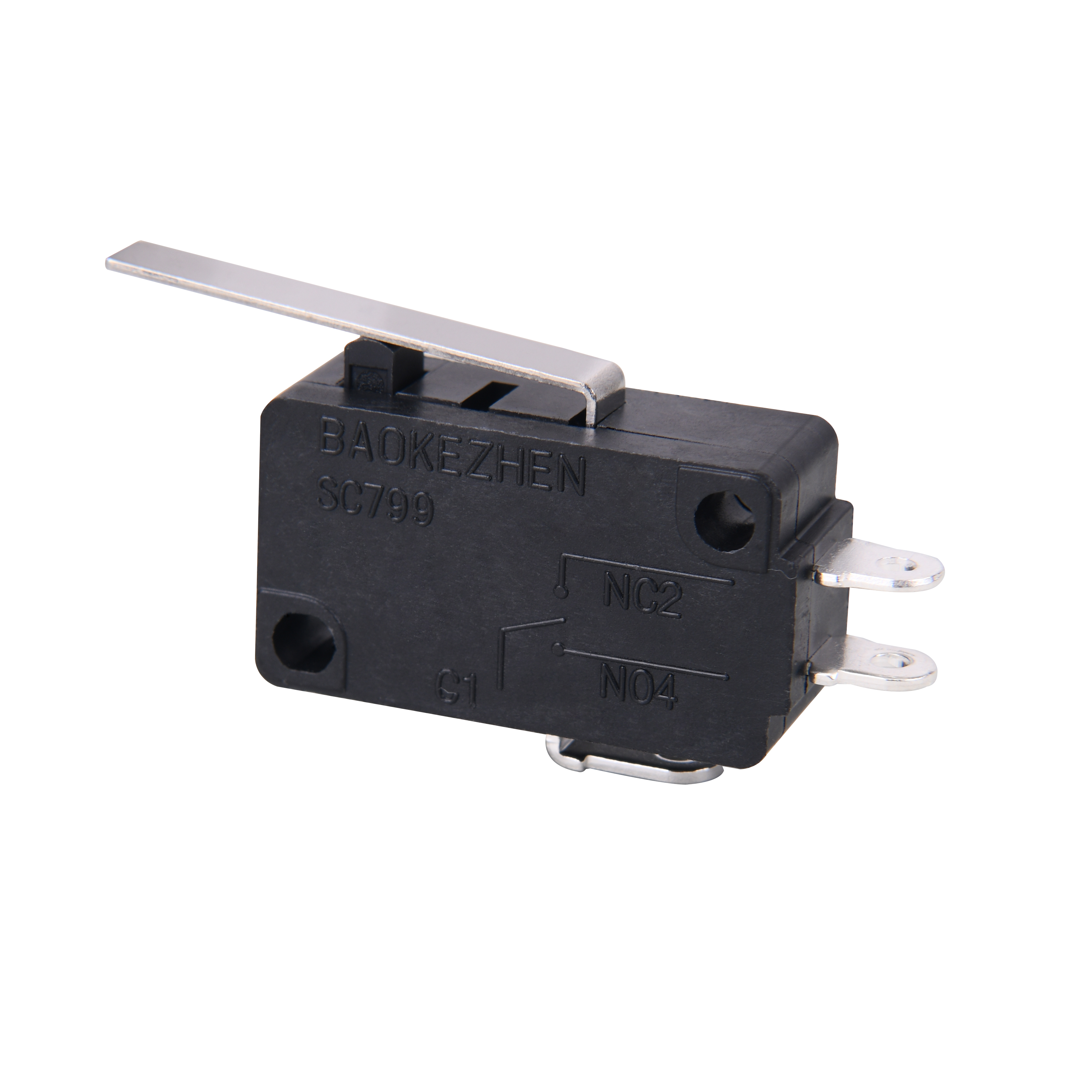

SC799
Micro Switches
BAOKEZHEN Micro switch, various handle for your choice, excellent actuation characteristic, Excellent Beryllium Copper spring support enough contact force and ensure mechanical life; Lesser Operation travel.
Protection Type | IP20 |
Ambient temperature | 0℃～+125℃ |
Flammability | UL94V-0 |
Heat and fire resistance | 850℃ |
Material of housing and actuator | PA66 |
Material of Contacts | Ag or AgSnO2 |
Material of Terminals | Copper Alloy |
Push-on force of terminals | ≥96N |
Electrical life | 1E4/5E4 |
Approval marks | CQC，UL,ENEC,KEMA,VDE,SEMKO |

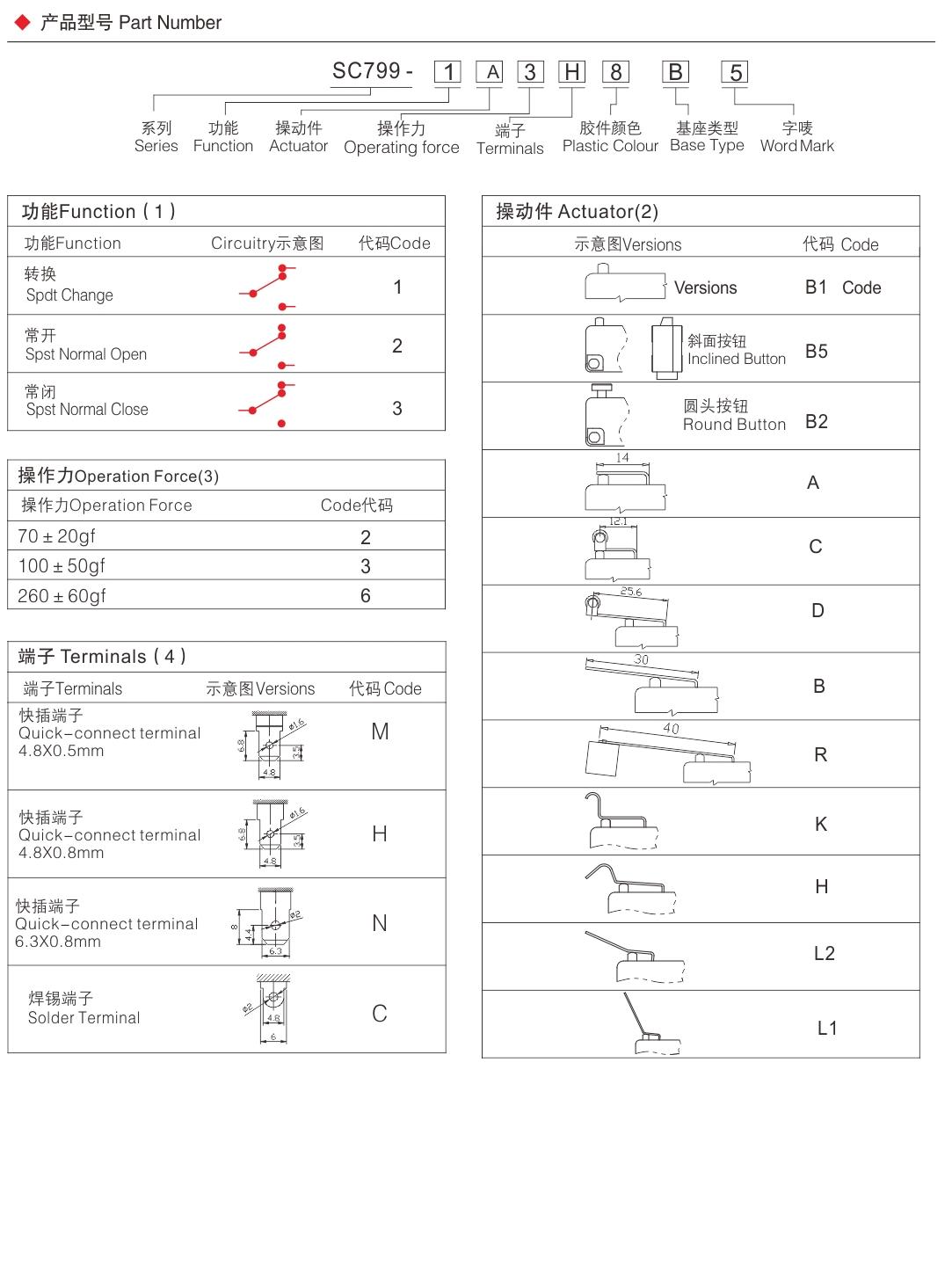

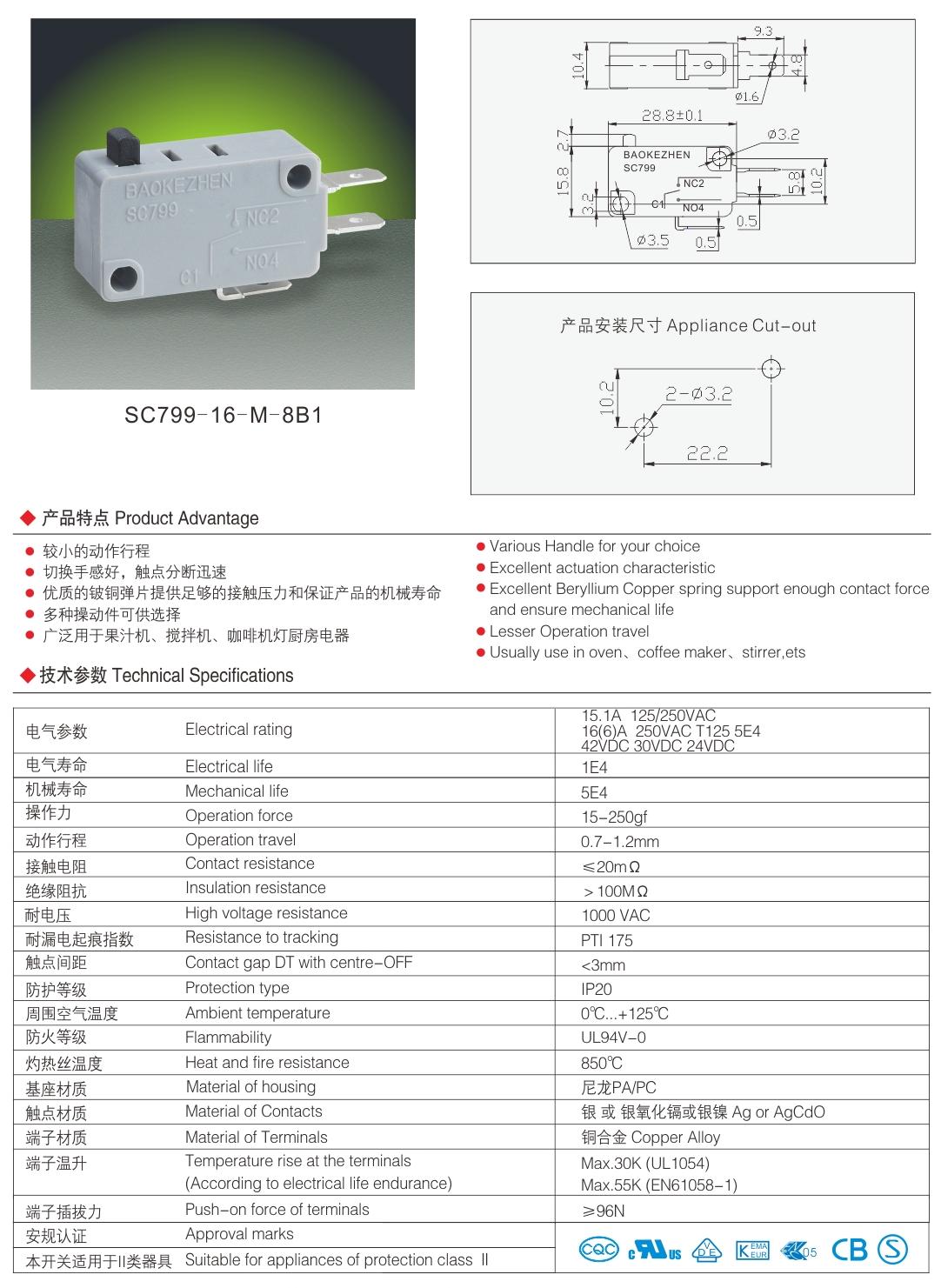

PRODUCT
SPECIFICATION
产品规格书
