SC767B

Rocker Switches

Excellent actuation characteristic; Excellent SWPB Spring support enough contact force and ensure mechanical life; Accessional waterproof hat for your choice; Usually use in oven, coffee maker, stirrer, power supply, power strip, ets.


Protection Type

IP20

Ambient temperature

0℃～+105℃

Flammability

UL94V-0

Heat and fire resistance

850℃

Material of housing and actuator

PA66

Material of Contacts

Ag or AgSnO2

Material of Terminals

Copper Alloy

Push-on force of terminals

≥96N

Electrical life

1E4

Approval marks

CQC,UL,SEMKO

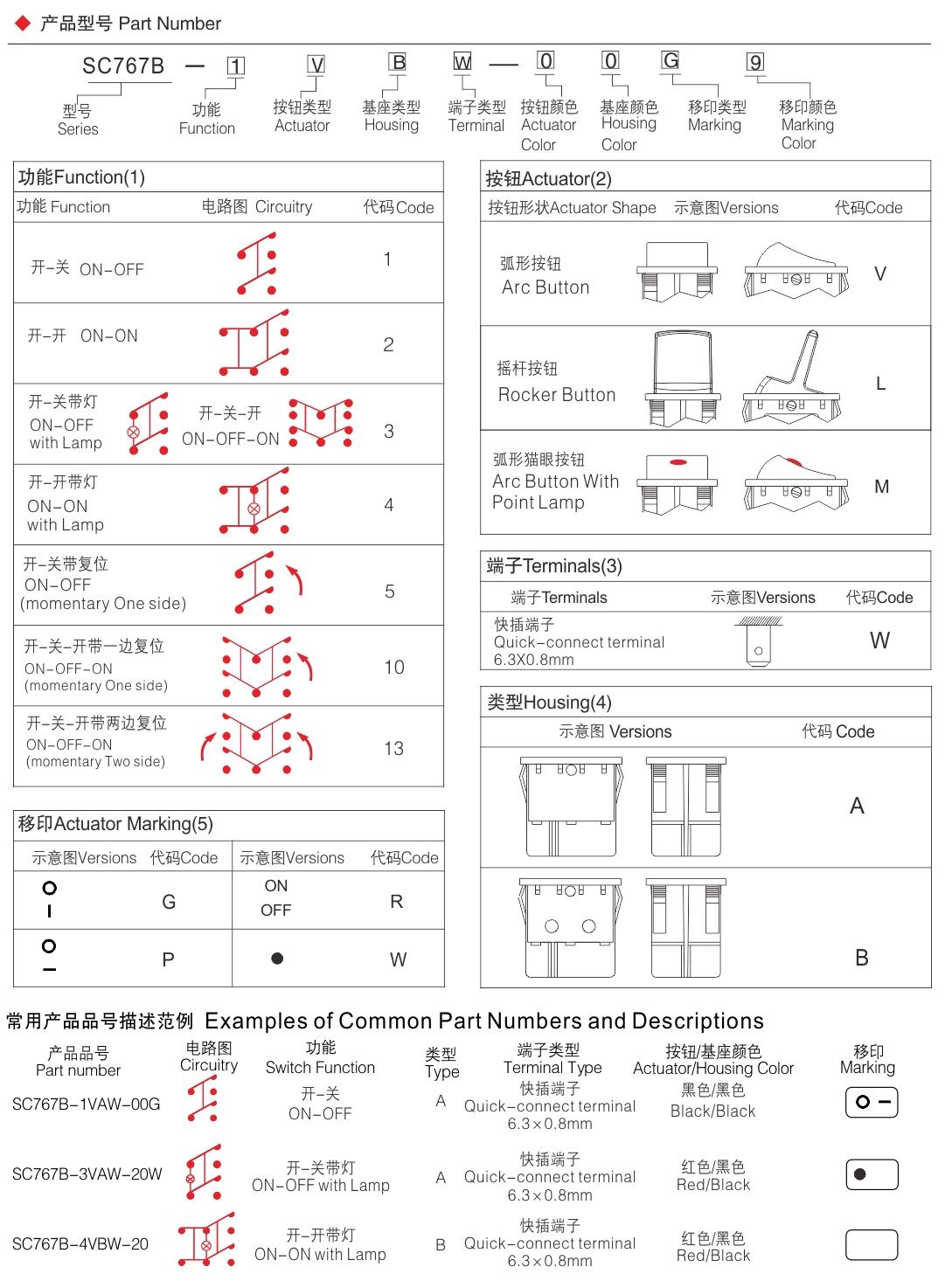

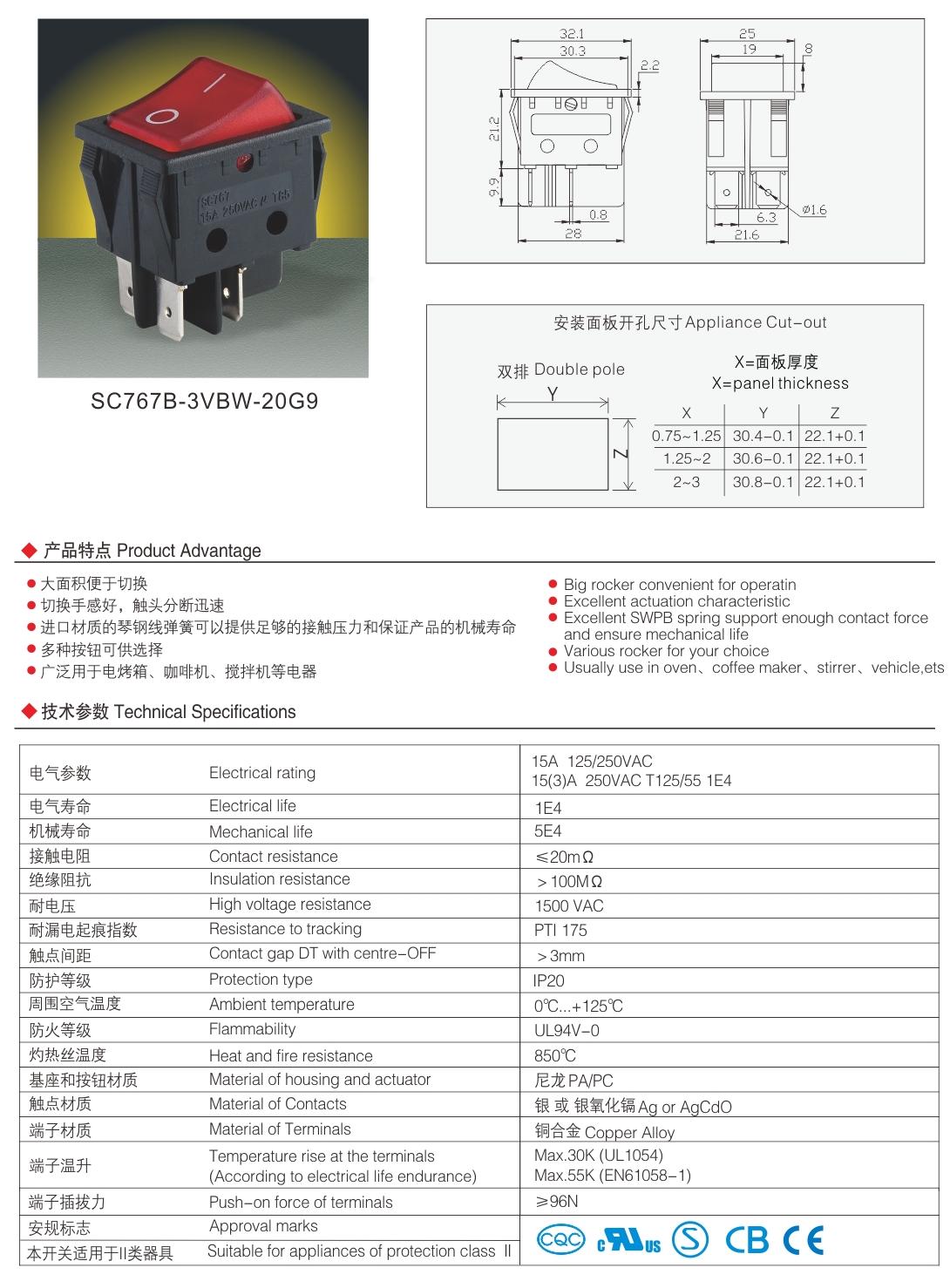

PRODUCT
